CTZ series midfield strong permanent magnet roller (half magnetic and magnetic two magnetic system structure) used for purification of powder, granular, bulk materials or the recycling of iron to prevent crusher, grinding, pressing, machine damage and wear plays a reliable protective effect. It is easy to install, strong suction, power consumption, continuous work, simple to operate, according to the TD-75 belt conveyor standard design to meet customers requirements for the use of high field strength at a great depth in addition to iron. Widely used in metallurgy, ceramics, abrasives, emery, non-metallic minerals, refractory materials, mining, food, chemical, glass, building materials and other industries.
Main technical parameters:
|
项目 |
筒径
Dmm |
适应带宽
Bmm |
筒长
mm |
筒表磁感应强度
≈Gs |
筒体转速
r/min |
粉状物料除铁粉
≈T/h |
块状物料除铁杂质
≈T/h |
重量
kg |

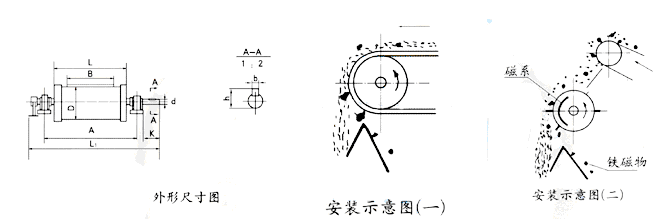

外型尺寸mm |
|
参数 |
|
型号 |
A |
L 1 |
K |
d? |
h |
b |
|
CTZ-32/40 |
320 |
400 |
500 |
3000 |
20-30 |
0.8 |
10 |
120 |
728 |
1010 |
100 |
50 |
53.5 |
14 |
|
CTZ-32/50 |
320 |
500 |
600 |
3000 |
1 |
15 |
150 |
850 |
1115 |
115 |
50 |
53.5 |
14 |
|
CTZ-40/50 |
400 |
500 |
600 |
3000 |
2 |
20 |
240 |
850 |
1115 |
115 |
50 |
60 |
16 |
|
CTZ-50/50 |
500 |
500 |
600 |
3000 |
3.5 |
30 |
360 |
|
CTZ-32/65 |
320 |
650 |
750 |
3000 |
2 |
20 |
210 |
1000 |
1350 |
135 |
|
CTZ-40/65 |
400 |
650 |
750 |
3000 |
2.8 |
30 |
350 |
1000 |
1350 |
135 |
60 |
64 |
18 |
|
CTZ-50/65 |
500 |
650 |
3000 |
4.5 |
40 |
420 |
90 |
97 |
24 |
|
CTZ-63/65 |
630 |
650 |
3000 |
7 |
45 |
830 |
90 |
97 |
24 |
|
CTZ-40/80 |
400 |
800 |
950 |
3000 |
8 |
55 |
470 |
1300 |
1630 |
175 |
70 |
76 |
20 |
|
CTZ-50/80 |
500 |
800 |
3000 |
10 |
65 |
600 |
|
CTZ-63/80 |
630 |
800 |
3000 |
10 |
80 |
800 |
1730 |
|
CTZ-80/80 |
800 |
800 |
4000 |
12 |
100 |
980 |
90 |
97 |
24 |
|
CTZ-63/100 |
630 |
1000 |
1150 |
3500 |
12 |
120 |
1200 |
|
CTZ-80/100 |
800 |
1000 |
1150 |
4000 |
115 |
140 |
1300 |
1500 |
2000 |
215 |
110 |
119 |
32 |
|
CTZ-100/120 |
1000 |
1200 |
1400 |
4000 |
20 |
180 |
1580 |
1750 |
2270 |
255 |
130 |
140 |
36 |
|
CTZ-125/140 |
1250 |
1400 |
1600 |
4000 |
30 |
250 |
1950 |
2000 |
2555 |
275 |
150 |
161 |
40 | |
